On November 3-4, 2023, Shenzhen held the "24th Academic Annual Meeting of the Urology Branch of the Shenzhen Medical Association", which invited many well-known domestic urology experts to participate. The conference includes: urologic oncology special meeting, urothelial cancer special meeting, nursing branch, etc.
Group photo of the conference
Dean of Sun Yat-sen University School of Medicine
Deputy Secretary of the Party Committee and Vice President of Sun Yat-Sen Memorial Hospital
Professor Xu Wei was invited to attend and give a surgical demonstration

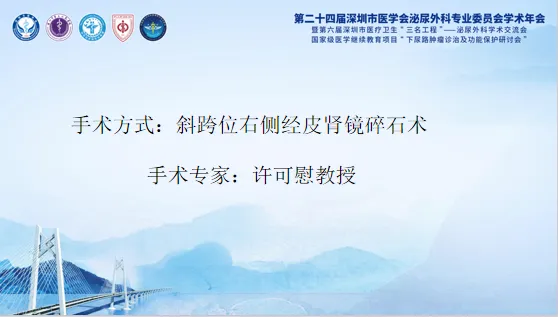

Surgical demonstration case data ↓
Semi-fist grip, light and comfortable, reduces hand fatigue and reduces strain.
Professor Xu demonstrated the electron nephroscopy of Shuotong
In the surgical demonstration session of the conference, Professor Xu Wei demonstrated the lithotripsy surgery performed by Shuotong electronephroscopy in the oblique supine position. The large field of view (130°) of the Shootong electronic nephroscope is more suitable for surgical operations in narrow assembly systems, with high clarity (160,000 pixels), mirror nozzle 3.6-8.1Fr, outer diameter 10.8Fr, and working channel 6Fr.
Surgical demonstration endoscopic screen recording↑
"Oblique supine position" is an innovative technology proposed by Professor Xu Wei in 2002.
The advantages of this position are:
1. Easy to anesthesia, easy to monitor during surgery, no respiratory compression, comfortable position of the patient, comfortable operation of the operator.
2. It has a large puncture area, a wide operating space, and good renal mobility, reducing the risk of renal parenchymal tear.
3. Once there are dangerous signs such as bleeding and infection during surgery, it is easy to rescue in time.
4. It is convenient for antegrade PCNL and retrograde URS combined surgery.
Shootong's original electronic hard mirror series
Shootong Medical launched a series of electronic hard mirror products with "half-clenched fist grip". The grip design is lightweight and comfortable, which can reduce hand fatigue and strain of the surgeon
I. Upper urinary tract solutions

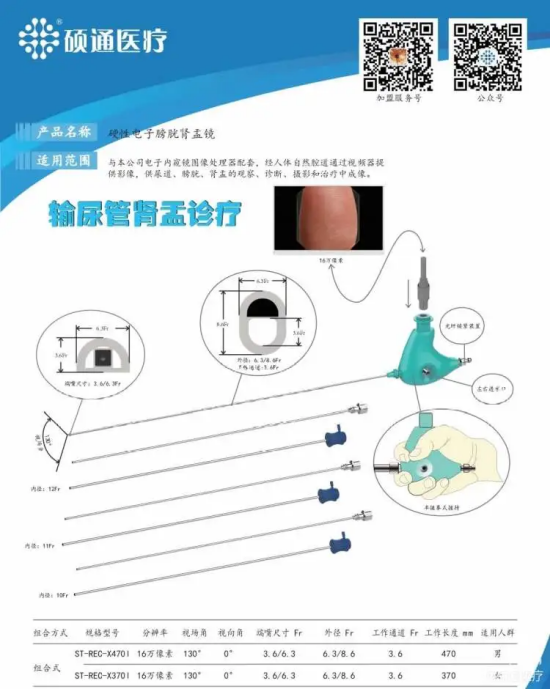

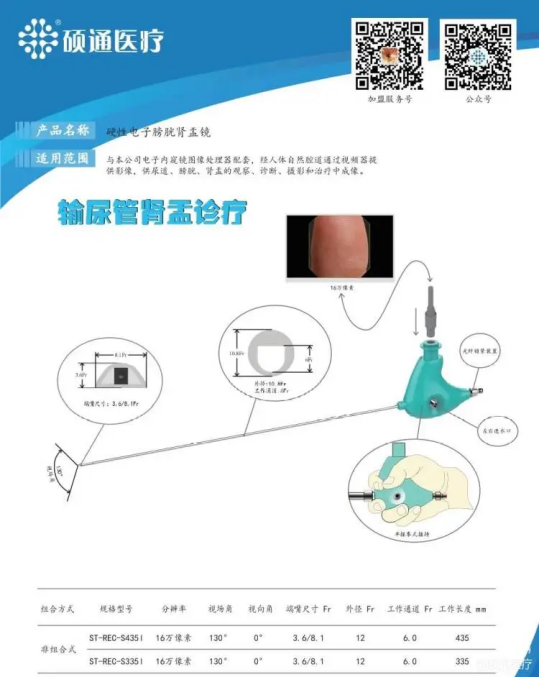

Diagnosis and treatment of ureteral renal pelvis （Replaceable fiber ureteroscope for adults and children）
In the diagnosis and treatment of ureteral renal pelvis. There have three specifications of mirror sheaths can be selected used in combination. It make the operation safer, faster and more effective.
For the diagnosis and treatment of renal pelvis can be equipped with 14Fr and 16Fr fascia dilator, which can connect negative pressure suction.
Micro-channel renal pelvis diagnosis and treatment can be equipped with 10Fr and 12Fr fascia dilator, which can connect negative pressure suction.
2. Lower urinary tract diagnosis and treatment plan (cystoscopy, seminal vesiclescopy)

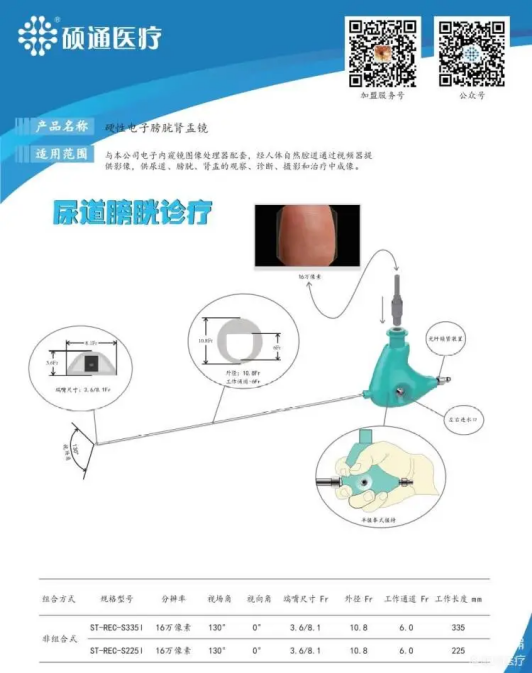

Urethral bladder diagnosis and treatment160,000 pixels, field of view range 130°, mirror mouth 3.6/8.1Fr, working channel 6Fr.
Another blockbuster product From Shuotong Medical--electronic seminal vesiclescopy1The mirror operation part is designed for semi-clench fist grip, which is lighter and comfortable, reduces the surgeon's hand fatigue and strain.2 Mirror mouth only 3.5/5.7Fr, reduce the broken wall, the existing product on the market are 4.5/6Fr; the front end variable diameter outer diameter 5.7/7.7Fr, length 70mm, the transition is smoother, and it is easier to reach the seminal vesicle.3 Working channel 3.6Fr, through more instruments, the mirror does not need to exit at the same time as the biopsy pliers during the sampling biopsy to avoid repeated entry and exit.4 The field of view angle is 130°, the conventional one is 110°, the optical mirror is 70°~90°, and the field of view is larger. Diagnosis and treatment of urethral bladder (hard electronic urethral cystoscopy)
III. Children's diagnosis and treatment plan
The working lengths of children's mirror have 270mm and 370mm.Mirror mouth 3.6/6.3Fr, working channel 3.6Fr, 160,000 pixels, 130° large field of view。

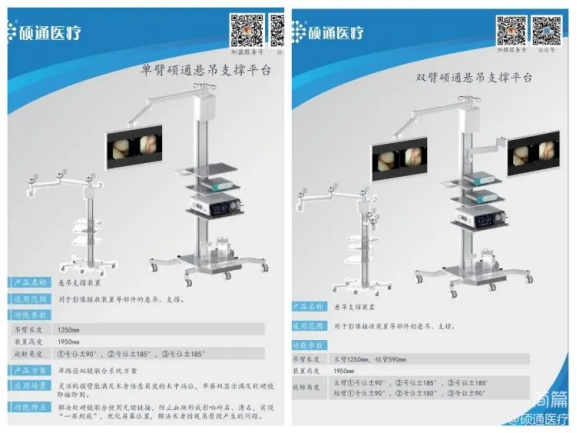

IV. Single and double-arm suspension support platform
1 The flexible swing arm optimizes the screen position to meet the position of the surgeon at any angle.2 Single-screen dual display meets the needs of soft and hard mirror plug and play. Double arms can meet the synchronous operation of the two surgeons and have a comfortable position.3 Soft and hard mirrors are seamlessly connected to prevent the formation of blood clots affecting gravel and clear stones.
